Mixers

With built-in MP3 Recorder & Digital Effects

AC Operation

Professional 12 channel mixer with user friendly features, in a compact & aesthetically superior construction.
10 MIC, 10 LINE & 01 STEREO Balanced inputs, through 6.3mm ( 1/4”) stereo phone jack socket.
Built-in digital MP3 player with recording & BT functions.
Digital Effects channel with DELAY, REPEAT & LEVEL controls.
Each input channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
The STEREO channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
Each input channel provides Peak LED to indicate excessive input signal levels.
Each channel has a signal Mute switch and a slide fader control for accurate setting of signal level.
Selector switch available between Stereo channel (Ch.11/12) & USB playback channel.
Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
MONITOR L&R outputs through 6.3mm (1/4”) phone jack sockets and individual monitor fader control.
AUX SEND output with independent level control.
Headphone output with Phones Control for output monitoring.
Operates on 240V 50Hz AC mains.

send enquiry

‹ ›

MIC INPUT	.
Impedance/Gain	2kΩ Balanced/65dB
LINE INPUT	.
Impedance/Gain	20kΩ Balanced/45dB
STEREO INPUT (L/Mono & R)	.
Impedance/Gain	10kΩ Balanced/20dB
THD	<0.1%
FREQUENCY RESPONSE	.
L/R Line Output	25Hz - 20kHz (+0, -1dB)
EQUALIZATION	.
TREBLE/MID/BASS	±12dB at 12kHz/2.5kHz/80Hz
CLIP LED INDICATION	4 dB prior to true clip
LINE OUTPUT	.
Nominal/Max Level	4dBu/21dBu (1.22V/9V)
Impedance	600Ω
DELAY SYSTEM	Digital Signal Processing
DELAY RANGE SETTINGS	Variable from 20 to 300ms
DIGITAL PLAYER	MP3 Player/Recorder with USB Reader, Bluetooth
HEADPHONE OUTPUT	200mV at 8Ω, THD <1%
MONITOR OUTPUTS (L&R)	1.6V
SIGNAL TO NOISE RATIO	>80dB
POWER SUPPLY	AC: 220-240V, 50/60Hz
DIMENSIONS	W520 × H105 × D350mm
WEIGHT	5.20kg

Operation Manual

8300 KB

Mixers : PA Audio Mixing Consoles - Stereo

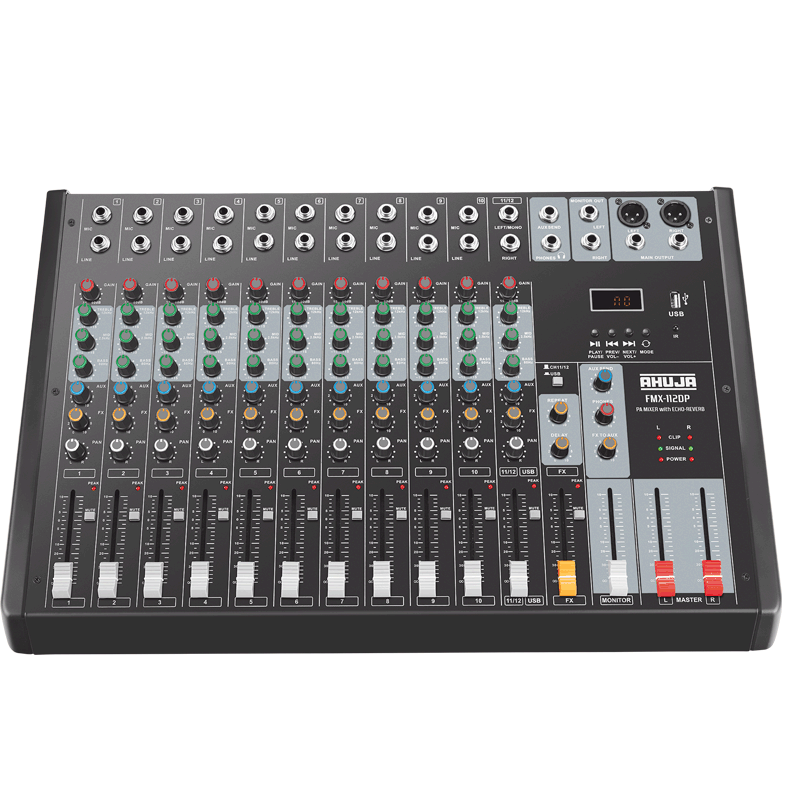

	FMX-112DP
	With built-in MP3 Recorder & Digital Effects
	AC Operation

FEATURES :

Professional 12 channel mixer with user friendly features, in a compact & aesthetically superior construction.
10 MIC, 10 LINE & 01 STEREO Balanced inputs, through 6.3mm ( 1/4”) stereo phone jack socket.
Built-in digital MP3 player with recording & BT functions.
Digital Effects channel with DELAY, REPEAT & LEVEL controls.
Each input channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
The STEREO channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
Each input channel provides Peak LED to indicate excessive input signal levels.
Each channel has a signal Mute switch and a slide fader control for accurate setting of signal level.
Selector switch available between Stereo channel (Ch.11/12) & USB playback channel.
Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
MONITOR L&R outputs through 6.3mm (1/4”) phone jack sockets and individual monitor fader control.
AUX SEND output with independent level control.
Headphone output with Phones Control for output monitoring.
Operates on 240V 50Hz AC mains.

SPECIFICATIONS :

MIC INPUT	.
Impedance/Gain	2kΩ Balanced/65dB
LINE INPUT	.
Impedance/Gain	20kΩ Balanced/45dB
STEREO INPUT (L/Mono & R)	.
Impedance/Gain	10kΩ Balanced/20dB
THD	<0.1%
FREQUENCY RESPONSE	.
L/R Line Output	25Hz - 20kHz (+0, -1dB)
EQUALIZATION	.
TREBLE/MID/BASS	±12dB at 12kHz/2.5kHz/80Hz
CLIP LED INDICATION	4 dB prior to true clip
LINE OUTPUT	.
Nominal/Max Level	4dBu/21dBu (1.22V/9V)
Impedance	600Ω
DELAY SYSTEM	Digital Signal Processing
DELAY RANGE SETTINGS	Variable from 20 to 300ms
DIGITAL PLAYER	MP3 Player/Recorder with USB Reader, Bluetooth
HEADPHONE OUTPUT	200mV at 8Ω, THD <1%
MONITOR OUTPUTS (L&R)	1.6V
SIGNAL TO NOISE RATIO	>80dB
POWER SUPPLY	AC: 220-240V, 50/60Hz
DIMENSIONS	W520 × H105 × D350mm
WEIGHT	5.20kg
