Portable PA

500 Watts

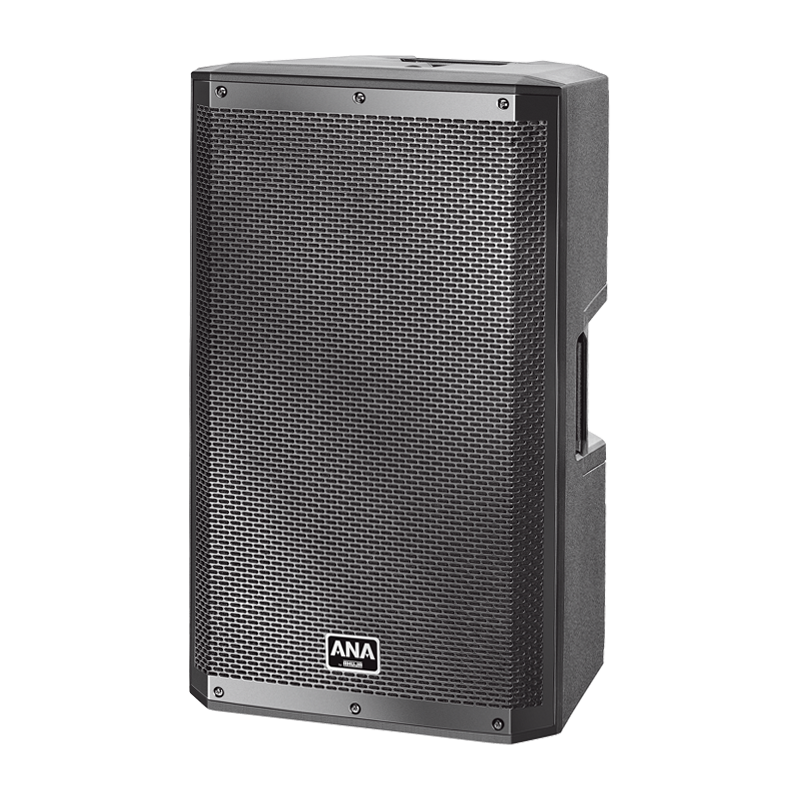

Professional Active Loudspeaker

ALIVE 515 is an Active Loudspeakers powered by built-in Class D Bi-Amplifiers.
Built-in DSP processor with presets; Music, DJ/Club, Live and Speech.
Attractive Plastic moulded cabinet. Product designed for use in a wide variety of PA and Musical Instrument applications.
ALIVE 515 active loudspeakers has three inputs Input-1 is a balanced XLR combo connector which accepts signal through balanced XLR, stereo TRS or a dual RCA socket. Input-2 is a balanced XLR combo connector which is switchable between MIC & LINE.
Balanced Line Output through XLR connector.
Active Tone controls for optimal shaping of desired Low/Mid/High frequency contents.
Built-in limiter which is tuned optimally for speaker protection.
Built-in MP3 player with BT facility.
Built-in TWS facility.

send enquiry

‹ ›

Power Output (Bi-Amp)	LF: 450W RMS at 1% THD Class D, HF: 50W RMS at 1% THD Class D
Output Regulation	≤ 0.5dB, no load to full load at 1kHz
Input Channels	INPUT-1: LINE: 775mV balanced, INPUT-2: MIC 15mV balanced / LINE 775mV balanced switchable, RCA Input
Frequency Response	50-20,000Hz ±3dB
DSP Processor	Built-in Preset for Speech, Music, Club / Dj, Live Sound Applications
Signal to Noise Ratio	60dB
Tone Controls	Bass: ±12dB at 100Hz, Mid: ± 12dB @ 1kHz, Treble: ±12dB at 10kHz
Output	Line output 775mV through M/XLR
Protections	AC: Fuse 1 × 5A (T 5A L
Power Supply	AC: 220-240V 50/60Hz
Dimensions	W425 x H730 x D410 mm
Weight	21.50kg

Operation Manual

3016 KB

Portable PA : PA Active Speakers

	ALIVE 515
	500 Watts
	Professional Active Loudspeaker

FEATURES :

ALIVE 515 is an Active Loudspeakers powered by built-in Class D Bi-Amplifiers.
Built-in DSP processor with presets; Music, DJ/Club, Live and Speech.
Attractive Plastic moulded cabinet. Product designed for use in a wide variety of PA and Musical Instrument applications.
ALIVE 515 active loudspeakers has three inputs Input-1 is a balanced XLR combo connector which accepts signal through balanced XLR, stereo TRS or a dual RCA socket. Input-2 is a balanced XLR combo connector which is switchable between MIC & LINE.
Balanced Line Output through XLR connector.
Active Tone controls for optimal shaping of desired Low/Mid/High frequency contents.
Built-in limiter which is tuned optimally for speaker protection.
Built-in MP3 player with BT facility.
Built-in TWS facility.

SPECIFICATIONS :

Power Output (Bi-Amp)	LF: 450W RMS at 1% THD Class D, HF: 50W RMS at 1% THD Class D
Output Regulation	≤ 0.5dB, no load to full load at 1kHz
Input Channels	INPUT-1: LINE: 775mV balanced, INPUT-2: MIC 15mV balanced / LINE 775mV balanced switchable, RCA Input
Frequency Response	50-20,000Hz ±3dB
DSP Processor	Built-in Preset for Speech, Music, Club / Dj, Live Sound Applications
Signal to Noise Ratio	60dB
Tone Controls	Bass: ±12dB at 100Hz, Mid: ± 12dB @ 1kHz, Treble: ±12dB at 10kHz
Output	Line output 775mV through M/XLR
Protections	AC: Fuse 1 × 5A (T 5A L
Power Supply	AC: 220-240V 50/60Hz
Dimensions	W425 x H730 x D410 mm
Weight	21.50kg
