POWER AMPLIFIERS

1200+1200 WATTS

Dual Channel Class D Power Amplifier

Dual Channel Class D Power Amplifier.
1200 + 1200 Watts rated output.
80Hz/120Hz Low Pass Filter.
Built-in Limiter ON/OFF circuit.
Toroidal Transformer power supply.
Two selectable input sensitivities.
Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Over voltage & Clip Monitoring.
Compact 2U Size.
BIS approved.

send enquiry

‹ ›

Continuous Rated Power Stereo/Mono	8Ω : 700W + 700W RMS, 4Ω : 1200W + 1200W RMS
THD + N	< 0.1%
Frequency Response (-1dB)	20-20,000Hz
Low Pass Filter	80/120Hz @ 24dB per octave
Power Bandwidth (0.5% THD)	20-20,000Hz
Input Sensitivity	0dBu (775mV) & 4dBu (1.23V) (Selectable)
Input Impedance	10k Unbalanced, 20k Balanced
Signal To Noise Ratio	> 100dB
Channel Separation	> 65dB at 1kHz
Damping Factor (8W)	>1000
Slew Rate	20V/µs
Protections	Temperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF) AC: Circuit Protector 16A; ± DC: Fuse 2×16A (T 16A L)
Input Connectors	2×XLR, Stereo Phone Jack 6.3mm
Output Connectors	Speakon 4-Way and heavy duty Binding Post for each channel
Cooling	2 × Variable Speed DC Fan with Temperature Sensing
Front Panel Controls	2×41 Step Level Attenuators
Indicators	Power ON/FAULT, Signal, Clip, Temperature, Protect (Ch. A & B)
Power Consumption (Rated)	2800VA @ 220-240V ~ 50/60Hz
Dimensions	W482 × H104 × D438mm
Weight	18.80kg

Operation Manual

12020 KB

POWER AMPLIFIERS : Dual Channel Power Amplifiers

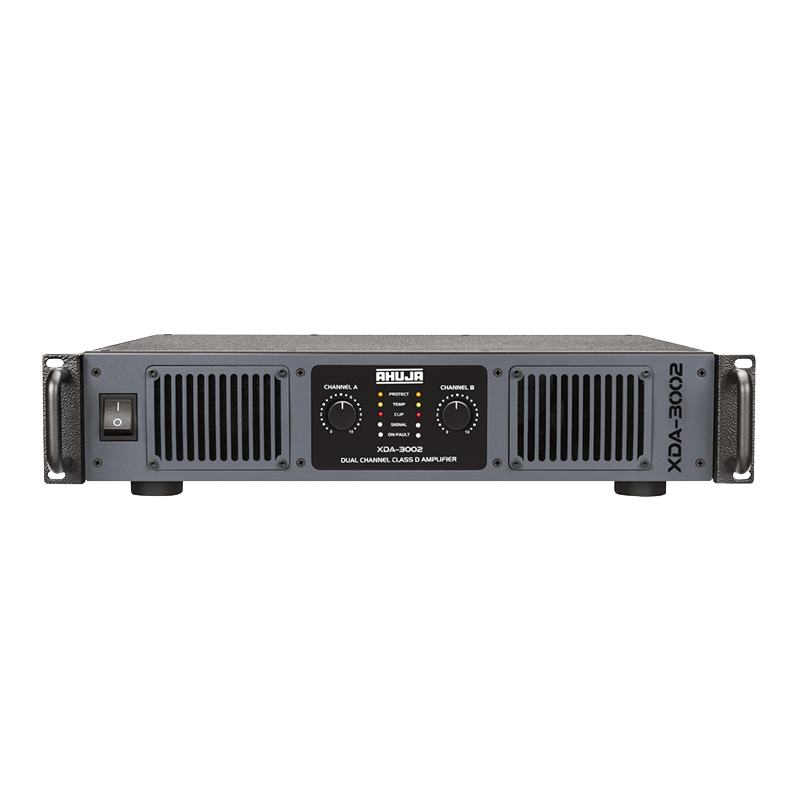

	XDA-3002
	1200+1200 WATTS
	Dual Channel Class D Power Amplifier

FEATURES :

Dual Channel Class D Power Amplifier.
1200 + 1200 Watts rated output.
80Hz/120Hz Low Pass Filter.
Built-in Limiter ON/OFF circuit.
Toroidal Transformer power supply.
Two selectable input sensitivities.
Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Over voltage & Clip Monitoring.
Compact 2U Size.
BIS approved.

SPECIFICATIONS :

Continuous Rated Power Stereo/Mono	8Ω : 700W + 700W RMS, 4Ω : 1200W + 1200W RMS
THD + N	< 0.1%
Frequency Response (-1dB)	20-20,000Hz
Low Pass Filter	80/120Hz @ 24dB per octave
Power Bandwidth (0.5% THD)	20-20,000Hz
Input Sensitivity	0dBu (775mV) & 4dBu (1.23V) (Selectable)
Input Impedance	10k Unbalanced, 20k Balanced
Signal To Noise Ratio	> 100dB
Channel Separation	> 65dB at 1kHz
Damping Factor (8W)	>1000
Slew Rate	20V/µs
Protections	Temperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF) AC: Circuit Protector 16A; ± DC: Fuse 2×16A (T 16A L)
Input Connectors	2×XLR, Stereo Phone Jack 6.3mm
Output Connectors	Speakon 4-Way and heavy duty Binding Post for each channel
Cooling	2 × Variable Speed DC Fan with Temperature Sensing
Front Panel Controls	2×41 Step Level Attenuators
Indicators	Power ON/FAULT, Signal, Clip, Temperature, Protect (Ch. A & B)
Power Consumption (Rated)	2800VA @ 220-240V ~ 50/60Hz
Dimensions	W482 × H104 × D438mm
Weight	18.80kg
