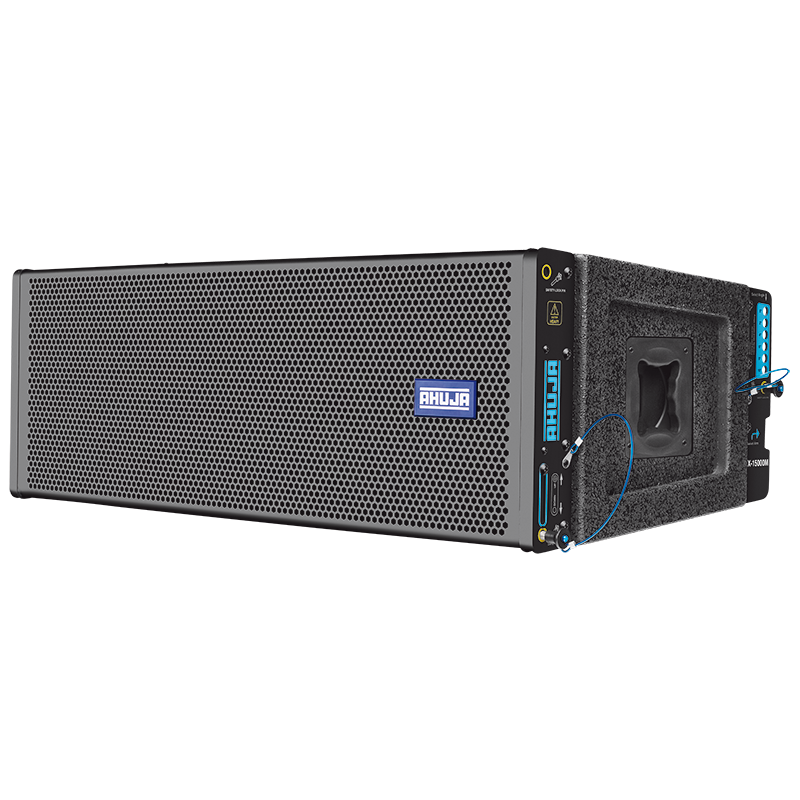

ALX-15000M

1200 WATTS

Line Array Speaker

ALX-15000M is a rugged and reliable Line Array Loudspeaker. Each cabinet comprises of two high power 30.48 cm (12”) Neodymium LF drivers and two high performance HF drivers to deliver crisp, loud and clear sound in a variety of indoor & outdoor applications.

  • Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
  • Comprises of two powerful HF drivers with a waveguide horn for constant curvature line array system.
  • Smart rigging arrangement for quick & secure installation.
  • Professional 2-way passive crossover network with HF protection.
  • Strong, attractive and well braced speaker cabinet in durable paint finish.
  • Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
  • A sturdy and rugged flybar frame is available for rigging the line array cabinets.
  • Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.

Power Rating

1200W RMS

Configuration

Two Way

Frequency Response

58-20,000Hz

Low Frequency Speaker

2 × 304.8 mm (12”), Ø89mm (3.5”) Voice Coil

High Frequency Unit

Waveguide Horn with 1 × 38.1mm (1.5”) Throat Compression Driver

SPL (1W/1m)

97dB

Max Rated SPL

128dB

Nominal Impedance

8Ω

Horizontal Coverage Angle

120°

Vertical Coverage Angle

10°

Variable Splay Angles

0°, 2°, 4°, 6°, 8°, 10°

Connectors

2 Nos. of Speakon Sockets

Dimensions

W1050 x H360 x D530 mm

Weight

48.70kg

Speakers : Special Purpose Speakers
ALX-15000M
1200 WATTS
Line Array Speaker
FEATURES :

ALX-15000M is a rugged and reliable Line Array Loudspeaker. Each cabinet comprises of two high power 30.48 cm (12”) Neodymium LF drivers and two high performance HF drivers to deliver crisp, loud and clear sound in a variety of indoor & outdoor applications.

  • Each line array cabinet is designed to provide controlled & coherent coverage pattern with excellent high frequency response.
  • Comprises of two powerful HF drivers with a waveguide horn for constant curvature line array system.
  • Smart rigging arrangement for quick & secure installation.
  • Professional 2-way passive crossover network with HF protection.
  • Strong, attractive and well braced speaker cabinet in durable paint finish.
  • Heavy duty steel grille with acoustically transparent foam to protect speakers from various adverse working conditions.
  • A sturdy and rugged flybar frame is available for rigging the line array cabinets.
  • Suitable for a wide variety of applications in Fixed Installations, Rental, Djs and Live Sound Reinforcement.
SPECIFICATIONS :

Power Rating

1200W RMS

Configuration

Two Way

Frequency Response

58-20,000Hz

Low Frequency Speaker

2 × 304.8 mm (12”), Ø89mm (3.5”) Voice Coil

High Frequency Unit

Waveguide Horn with 1 × 38.1mm (1.5”) Throat Compression Driver

SPL (1W/1m)

97dB

Max Rated SPL

128dB

Nominal Impedance

8Ω

Horizontal Coverage Angle

120°

Vertical Coverage Angle

10°

Variable Splay Angles

0°, 2°, 4°, 6°, 8°, 10°

Connectors

2 Nos. of Speakon Sockets

Dimensions

W1050 x H360 x D530 mm

Weight

48.70kg
