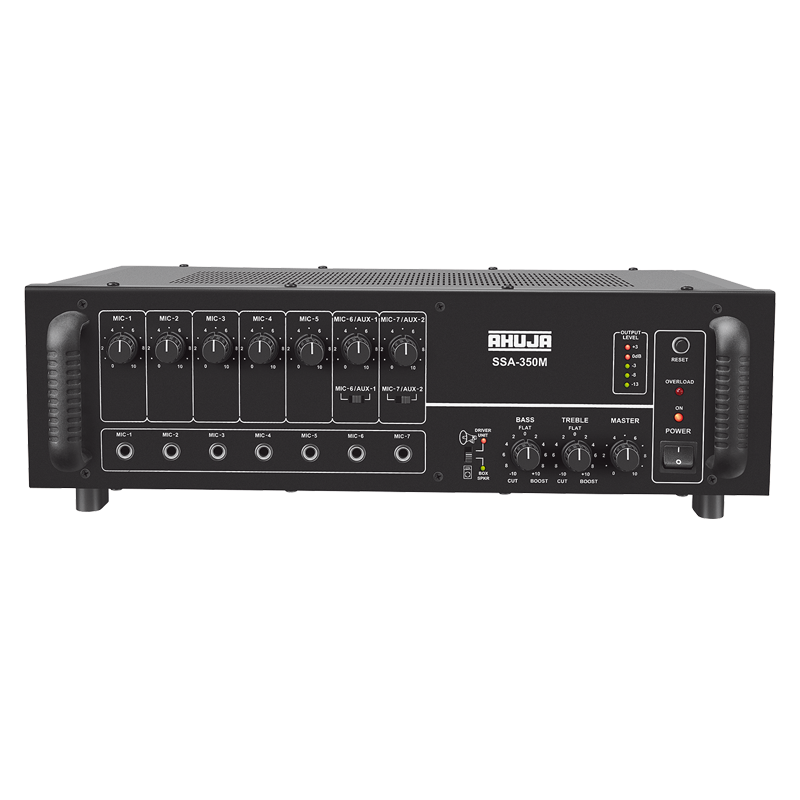

High Wattage PA Mixer Amplifier
7 Mic & 2 Aux Inputs.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Line Input for connecting the output from any external PA mixer or permitting SSA-350M to be used as a Booster Power Amplifier.
Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Instant transfer to DC power (Car Battery) if AC power fails.
|
Power Output |
450W Max., 350W RMS at 10% THD, 320W RMS at 5% THD, 300W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ, 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ |
|
Frequency Response |
50-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
|
Outputs |
Preamp 200mV/600Ω, Line 1V/1kΩ |
|
Speaker Outputs |
4Ω, 8Ω, 70V & 100V |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 36V (3 × 12V Car Battery) |
|
Power Consumption |
AC: 660VA DC: 6A |
|
Dimensions |
W480 × H155 × D360 mm |
|
Weight |
18.90kg |
